ecos AUTOROW – automatically positions test series for you!
Increase the efficiency of your hardness testerWhat is ecos AUTOROW?
The optional module ecos AUTOROW enables the automatic fine positioning of test series at the specimen edge. This significantly increases the efficiency of your fully automatic DuraScan and DuraVision hardness tester.

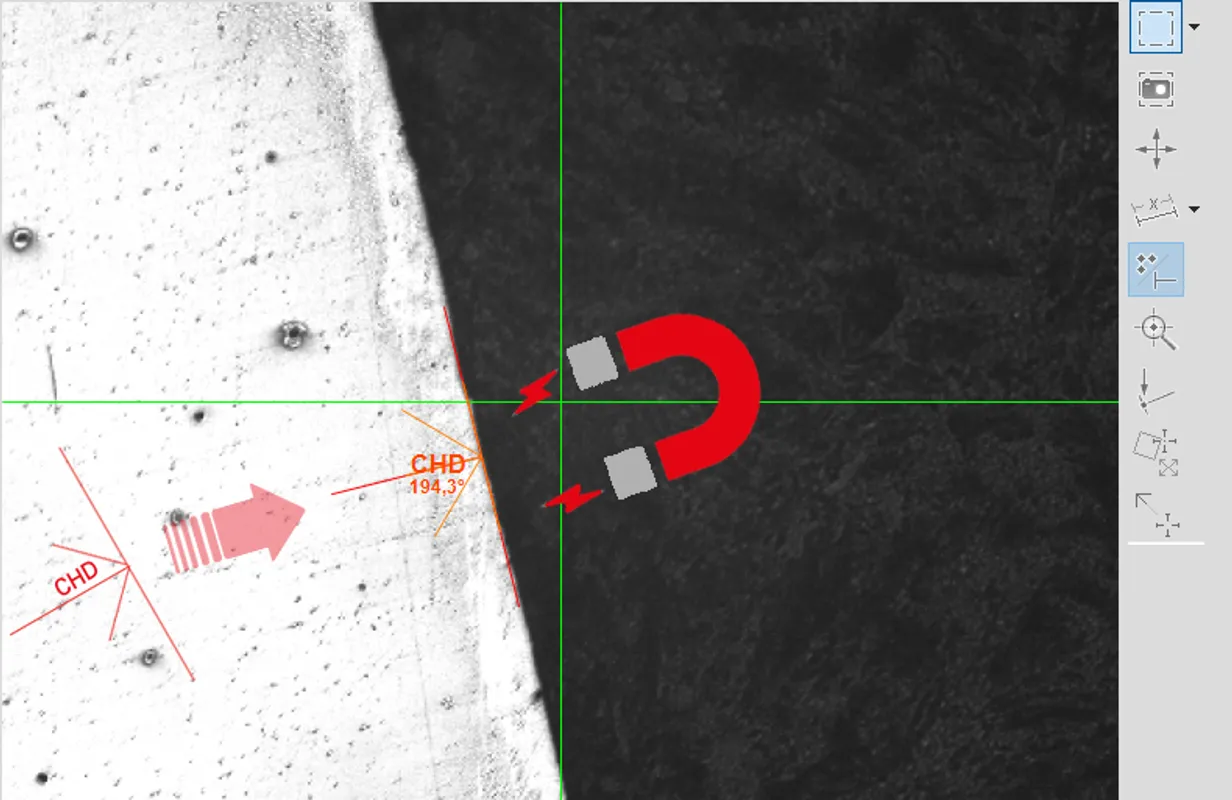

It allows row start points pre-positioned in the overview camera to be placed automatically at the specimen edge. The edge is detected automatically and precisely in the measuring camera image, the row is shifted according to its alignment and then aligned at right angles to the specimen edge. It makes no difference here whether the row has been positioned slightly outside or inside the specimen edge.
The swivelled in measurement lens is always used for positioning.
The function is ideal for use in combination with predefined specimens (function “load specimen”). Since all test series are predefined, it only remains for the specimen to be aligned on the specimen using the specimen reference point in the live overview screen. Fine positioning is performed automatically by mouse click – with ecos AUTOROW.
